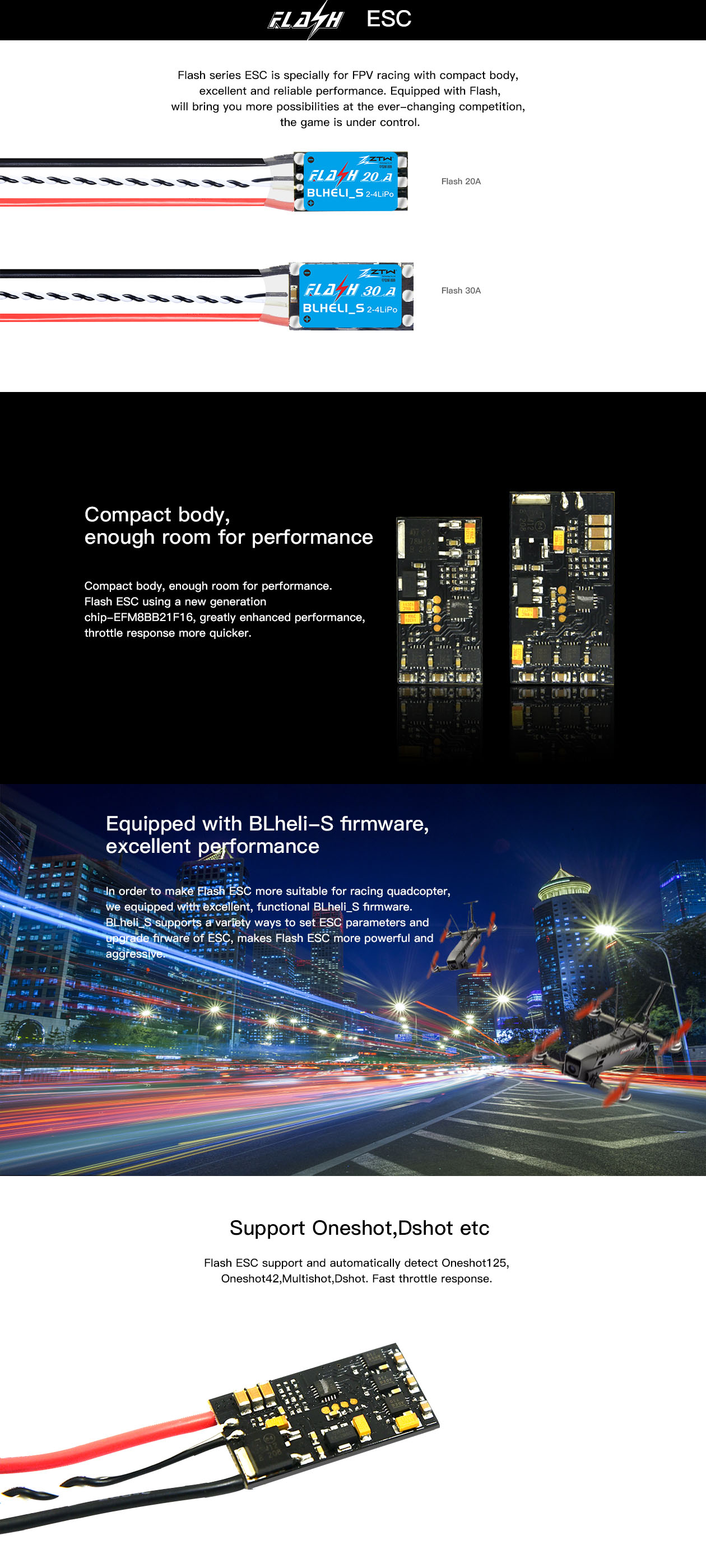

ZTW brushless ESC
ZTW brushless ESC

Product Type   Flash-30A OPTO
Model Number   7030301
Type brushed/brushless brushless
  High Voltage / Normal Normal
Specifications Continuous Current 30A
  Burst Current 40A
  Battery Cell 5-18NC\2-6Lipo
  BEC output NO
Size Width 16.8mm
  Length 30.8mm
  Height 4.7mm
  Weight 11g
Wires & Connectors Power  Wires 18#AWG,120mm-Red/120mm-Black
  Motor Wires N/A
  Signal  Wires (Black & white twisted)28#AWG,150mm a JR male plug at one side
  Power plug  no
ESC Programing via Transmitter
  AIR Program Card
  LED Program Card
  LCD Program Card
  WiFi Module
  USB program connector yes
Firmware Firmware Upgrade yes
Program
Default setting
