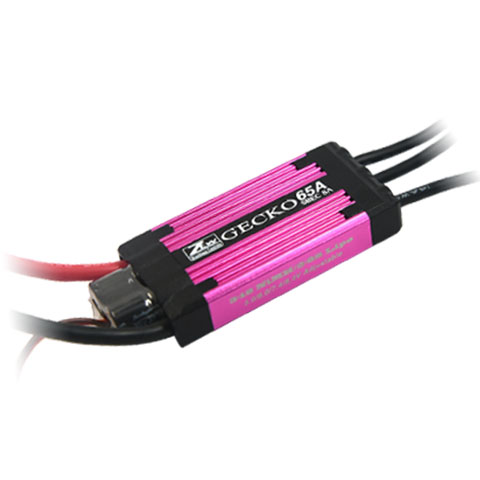

Product Model   Gecko 65A SBEC 5A
Model Number   4065201
Type brushed/brushless brushless
  High Voltage / Normal Normal
Specifications Continuous Current 65A
  Burst Current 85A
  Battery Cell 5-18NC/2-6Lipo
  BEC output 5.0V6.0V7.4V8.4V ajustable/8A

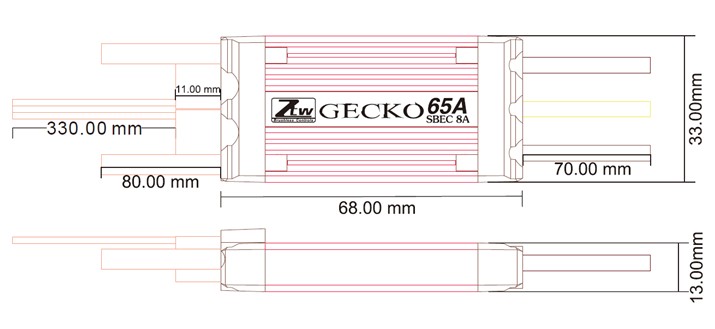

Size Length 68mm
  Width 33mm
  Height 13mm
  Weight 67g
Wires & Connectors Power  Wires 12#AWG,80mm-Red/80mm-Black
  Motor Wires 14#AWG,160mm-Black
  Signal  Wires (Brownorange and red)60C,330mm a special JR male plug at one side
  Signal  Wires 2 no
  Power plug  no
ESC Programing via Transmitter  yes
  AIR Program Card
  LED Program Card
  LCD Program Card yes
  WiFi Module yes
    yes
Firmware Firmware Upgrade yes
Programmable items
Tone of value

Prog.Item
BEEP- BEEP-
BEEP-
BEEP-
BEEP-BEEP-
BEEP-
BEEP-  BEEP-
BEEP-
BEEP— BEEP—
BEEP-
BEEP—
BEEP-
BEEP-
BEEP—
BEEP-
BEEP-
BEEP-
BEEP—
BEEP-
BEEP-
BEEP-
BEEP-
  Brake Type Brake OFF Soft Brake  Mid Brake  Hard Brake
  Battery Type NiCd/NiMH LiPo LiFe
  Cut Off Voltage Threshold 2.8V/50% 3.0V/60% 3.2V/65% No Protection
  Restore Factory Setup Defaults Restore
  Motor Timing Auto 15° 22° 30°
  SBEC Voltage Output 5.0V        6.0V   7.4V 8.4V
  Governor Mode RPM OFF 1st Soft Start 2nd Soft Start Governor Mode 1 Governor Mode 2
  Motor Rotation Forward Reverse
  Start Up Strength 10% 15% 20% 25% 30% 35% 40% 45% 50%
  Low Voltage Cut Off Type Reduce Power Cut Off  Power
Default Brake Type:  Brake Off
Battery Type: LiPo with Automatic
Cell detective
Cut Off Voltage Threshold:      3.0V/60%
Motor Timing:  Auto
SBEC Voltage Output:  5.0V
Governor Mode:  RPM OFF
Motor Rotation:  Forward
Start Up Strength:  30%
Low Voltage Cut Off Type:   Reduce Power
