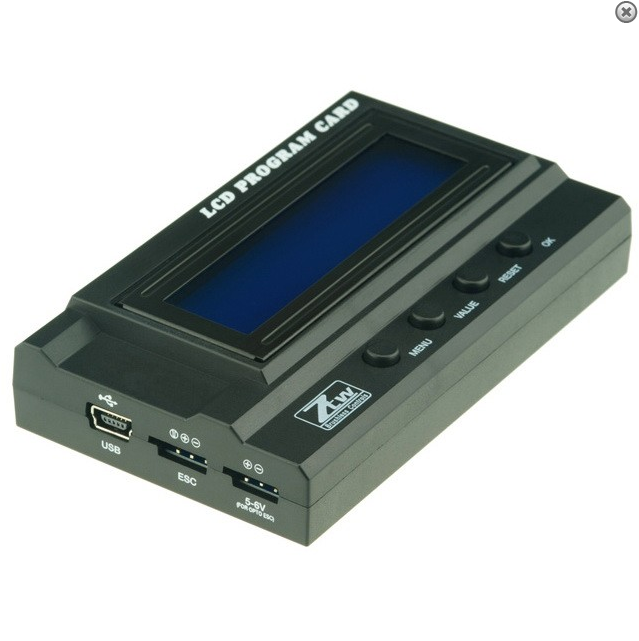

This LCD screen card can be used to program all ZTW Gecko Series brushless ESCs quickly and easily. Note: ONLY compatible with ZTW Gecko Series ESCs. Cannot be used to program other ZTW ESCs.
Features:
•Easily set programming parameters without the use of your transmitter.
•Parameters are displayed on the LCD screen for ease of use.
•Includes USB PC interface for data logging & updating ESC firmware.
Programmable Options:
•Brake setting (off / soft / mid / hard -- default: off)
•Battery type: (Ni-XX / LiPo / LiFe -- default: LiPo auto detect)
•Cut-off voltage threshold (2.8V 50% / 3.0V 60% / 3.2V 65% / No protection -- default: 3.0V 60%)
•Factory default setup reset
•Timing settings (auto / 2° / 8° / 15° / 22° / 30° -- default: auto)
•SBEC Voltage Output (5.0v / 6.0v / 7.4v / 8.4v -- default: 5.0v)
•Governor mode: (RPM off / 1st Soft Start / 2nd Soft Start / Gov Mode 1 / Gov Mode 2 -- default: RPM off)
•Motor rotation: (forward / reverse -- default: forward)
•Start up (Low / Mid / High-- default: 30%)
•LVC cut-off type: (reduce gradually / cut-off -- default: reduce gradually)
Specifications
Dimension: 91mm x 54mm x 18mm
Weight: 68g
Power supply: DC 5.0V~12.0V
Features:
•Easily set programming parameters without the use of your transmitter.
•Parameters are displayed on the LCD screen for ease of use.
•Includes USB PC interface for data logging & updating ESC firmware.
Programmable Options:
•Brake setting (off / soft / mid / hard -- default: off)
•Battery type: (Ni-XX / LiPo / LiFe -- default: LiPo auto detect)
•Cut-off voltage threshold (2.8V 50% / 3.0V 60% / 3.2V 65% / No protection -- default: 3.0V 60%)
•Factory default setup reset
•Timing settings (auto / 2° / 8° / 15° / 22° / 30° -- default: auto)
•SBEC Voltage Output (5.0v / 6.0v / 7.4v / 8.4v -- default: 5.0v)
•Governor mode: (RPM off / 1st Soft Start / 2nd Soft Start / Gov Mode 1 / Gov Mode 2 -- default: RPM off)
•Motor rotation: (forward / reverse -- default: forward)
•Start up (Low / Mid / High-- default: 30%)
•LVC cut-off type: (reduce gradually / cut-off -- default: reduce gradually)
Specifications
Dimension: 91mm x 54mm x 18mm
Weight: 68g
Power supply: DC 5.0V~12.0V
